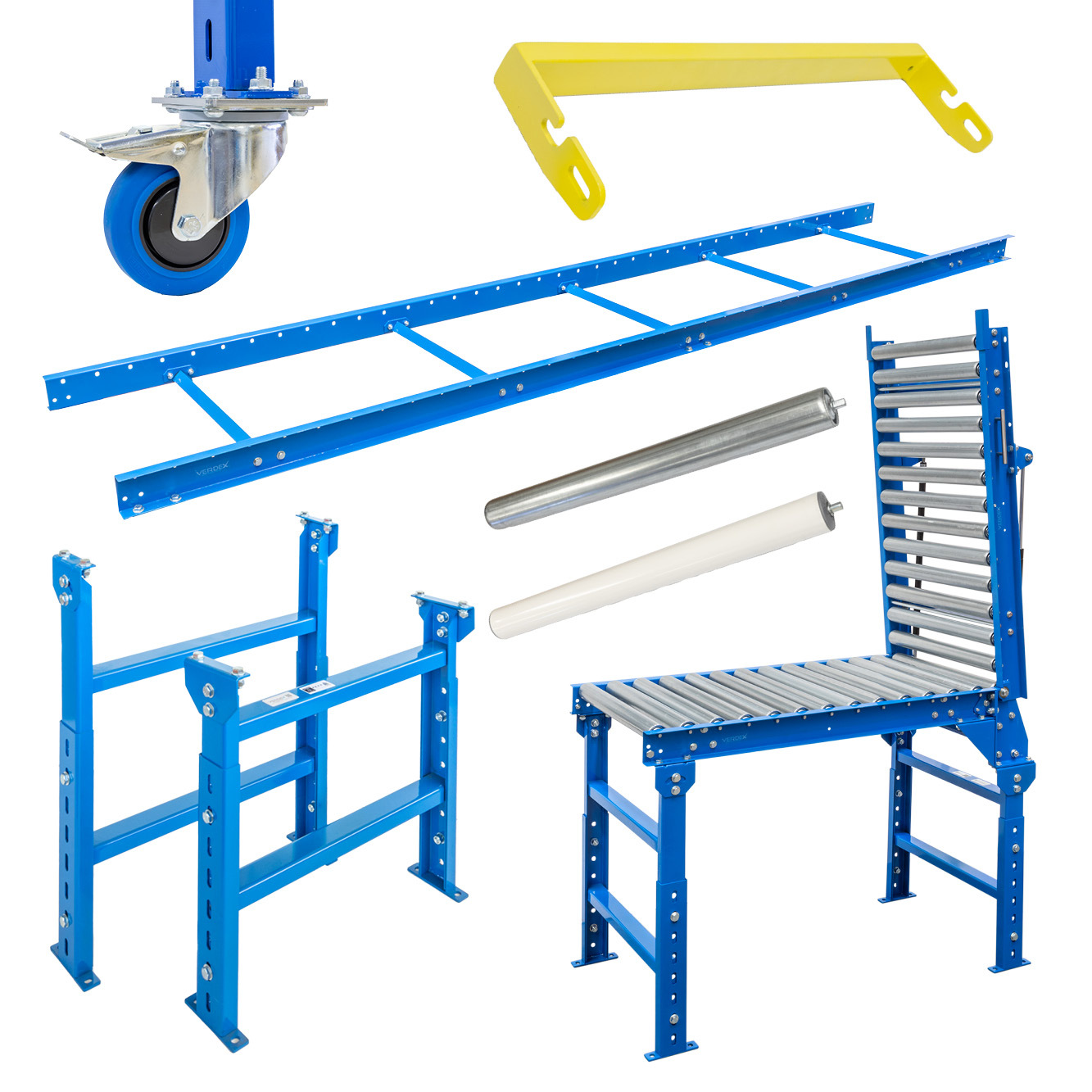

Conveyor Components

Build your own Conveyor System

Verdex’s full range of gravity conveyors provides the simple solution for moving all types of products in industries such as transport, distribution centres, container unloading & similar. Roller conveyors are one of the most common types of conveyors applied in conveying flat bottom type products such as cases, boxes, pallets & trays. These kind of conveyors improve efficiency distribution & line links between different stages of production of your product.

Buy complete kits here

• Poly Rollers
• Steel Rollers

V3240 Conveyor Frame (Rollers Sold Separately)

• Power coated Blue
• Overall Size: 3000x660x80mm
• 40 Rollers = 75mm pitch between roller
• 20 Rollers = 150mm pitch between roller
• Frame Capacity: 200kgs / mtr
• Unit Weight: 19kg

V3140 600mm Conveyor Stand

• Power coated Blue
• Overall Size: 660x125x1015mm
• Adjustable Height: 805-1105mm (includes frame)
• Unit Weight: 8.5kg

V3142 Galvanised Steel Rollers to suit 600mm Wide Conveyors

• Overall Size: 552x48mm
• Roller Size: 527x48mm
• Shaft Size: 10x8mm
• Spring Loaded Shaft
• Pre-Galvanized Tube 1.65mm Thick
• Capacity: 100kg / Roller
• 20 per carton
• Unit Weight: 1.35kg

V3143  Poly Rollers to suit 600mm Wide Conveyors

• Overall Size: 552x48mm
• Roller Size: 527x48mm
• Shaft Size: 10x8mm
• Spring Loaded Shaft
• Capacity: 20kg / Roller
• 20 per carton
• Unit Weight: 0.98kg

V3102 Castor Kit to suit Conveyors

• Unit Weight: 2kg
